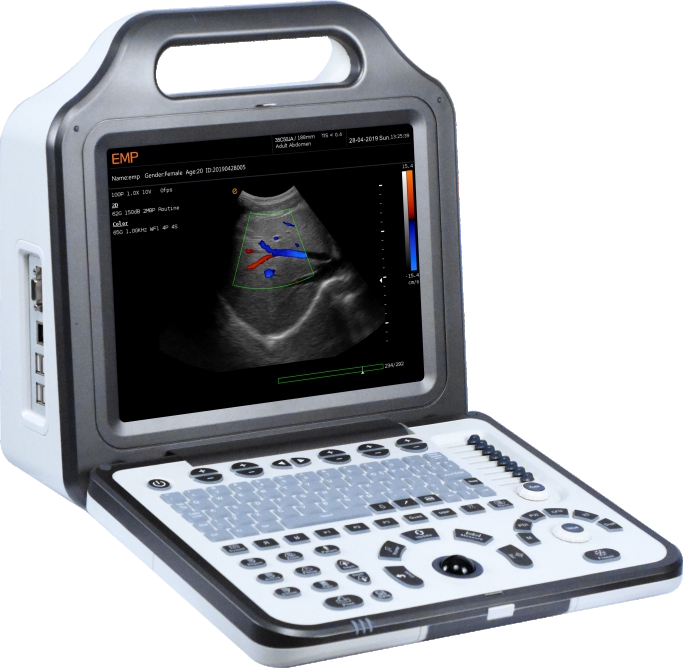

G20 Portable Color Doppler Ultrasound Diagnostic System
G20 Portable Color Doppler Ultrasound Diagnostic System
The G20 Portable Color Doppler Ultrasound Diagnostic System is ergonomically designed, notebook-sized, and omnipotent! This is an epoch-making change in the field of ultrasonography. The ultra-portable color ultrasound diagnostic system not only provides excellent image quality, but also enables superior ultrasound technology to provide quality service to all patients anytime, anywhere.
  • SUPPORT
  • SPECIFICATIONS
  • OPTION
  • GALLERY

G20 Portable Color Doppler Ultrasound Diagnostic System.


Peculiarity:


Ergonomically designed

* 12.1" high resolution LCD monitor:

Backlit keyboard, reasonable control platform layout, convenient operation process;


2 quickly switchable probe interfaces

The ingenious design and long-term live operation can be applied to different clinical scenarios with general presets, measurement and calculation software packages

Multiple languages are supported

DICOM 3.0, supporting HIS. PACS system




Scanning mode: convex array, linear array, microconvex


Display: 10-inch line flicker-free display

Display mode: B type, B+B, B+M, M, 4B


Scanning depth: 40-240mm, 16 levels adjustable


Resolution: 2mm laterally ≤, 1mm axial ≤


Blind zone: ≤ 3mm


Geometric accuracy: 5% lateral ≤, 5% longitudinal ≤


Electronic focus: the number of focal points, the focal distance, the focal position can be adjusted


Movie playback: ≥ 500 frames


Image storage: ≥64 frames


Grayscale: 256 levels


Postural markers: 40 ≥

Image processing: up and down, left and right, black and white flips, histogram statistics, edge enhancement, gamma correction, frame correlation full Chinese menu


Measurements: distance, circumference, area, volume, heart rate, gestational age, due date


Character display: date, clock, name, gender, age, doctor, hospital, full-screen character editing, comments


Interfaces: video, USB 2.0, VGA


35C50JA-Convex Array Probe

75L40JA-line array probe

65C15JA-Microconvex Probe


35C20GA-microconvex probe


65C10JA-Cavity Probe

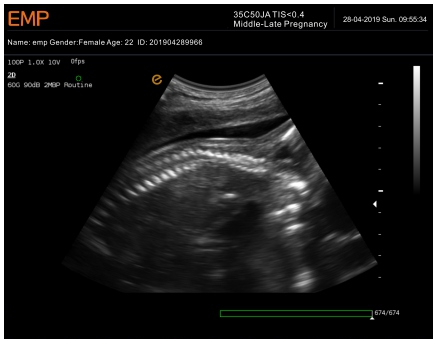

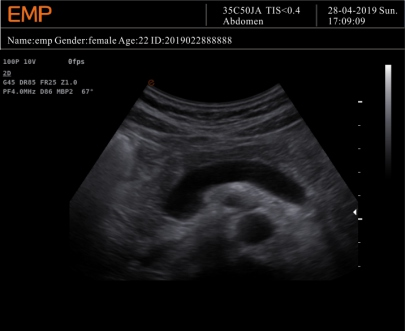

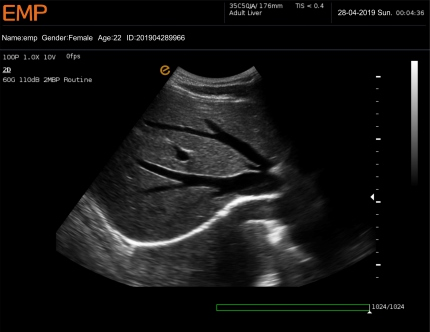

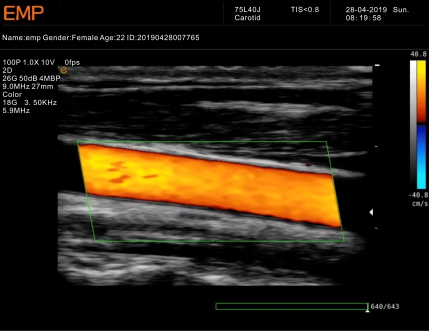

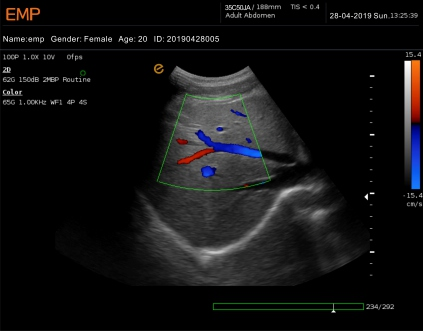

Excellent clinical images



Transducers
