C20 is a portable color Doppler ultrasound system featuring a lightweight main unit of less than 5 kg, a 15-inch LCD display, a backlit control panel and dual probe sockets. It delivers clear imaging and powerful clinical functions for abdominal, gynecological, small-parts, vascular, urological, prostate, endocavitary, surgical, cardiac and pediatric examinations.
The system supports B, M, PW, Color and PDI imaging modes. Imaging functions include harmonic imaging, spatial compound imaging, image enhancement, real-time zoom, IMT measurement and automatic PW envelope tracing. Its Linux operating system provides stable operation, low power consumption and a boot time of less than 13 seconds.
C20 includes a built-in lithium battery with more than 3 hours of operating time. The standard configuration includes a 3.5MHz convex probe and a 7.5MHz linear probe, with optional transvaginal, micro-convex and rectal probes.
SUPPORT
SPECIFICATIONS
OPTION
GALLERY
Technical Specifications
Main Unit
1. Main-unit weight: less than 5 kg.
2. Display: 15-inch LCD.
3. Control panel: backlit keyboard.
4. Probe sockets: dual probe sockets.
5. Built-in SD card: at least 128GB, expandable as required.
6. Built-in lithium battery: more than 3 hours of operating time.
7. Boot time: less than 13 seconds.
Imaging Modes
B, M, PW, Color and PDI.
Image Processing
1. Harmonic imaging.
2. Spatial compound imaging.
3. Image enhancement.
4. Real-time zoom.
5. One-click parameter saving.
6. One-click parameter restoration.
Measurement Functions
1. Routine distance, area and circumference measurements.
2. IMT measurement.
3. Automatic PW envelope tracing and spectrum measurement.
Software Functions
1. Built-in ultrasound workstation.
2. DICOM support.
3. Biopsy guidance.
4. Lithotripsy guidance.
5. Multiple examination report templates.
6. Support for commonly used printers.
7. Multiple-language switching.
8. Image demonstration and product trial functions.
9. Software upgrade support.
10. No factory return is normally required if a software upgrade fails.
Operating System and Interfaces
1. Linux operating system.
2. Low power consumption and stable operation.
3. HDMI port.
4. Video port.
5. S-Video port.
6. Network port.
7. Two USB ports.
8. Remote-control port.
Clinical Applications
Suitable for abdominal, gynecological, small-parts, vascular, urological, prostate, endocavitary, surgical, cardiac and pediatric examinations.
Product Name: C20 Portable Color Doppler Ultrasound System
Product Overview
C20 is a portable color Doppler ultrasound system based on a Linux operating system. It features a 15-inch LCD display, a backlit control panel and dual probe sockets.
The main unit weighs less than 5 kg and includes a built-in lithium battery providing more than 3 hours of operation.
Clinical Applications
1. Abdominal examinations.
2. Gynecological and obstetric examinations.
3. Small-parts and superficial examinations.
4. Vascular examinations.
5. Urological and prostate examinations.
6. Endocavitary examinations.
7. Surgical ultrasound examinations.
8. Cardiac examinations.
9. Pediatric examinations.
Main Features
1. 15-inch LCD display.
2. Dual probe sockets.
3. B, M, PW, Color and PDI modes.
4. Harmonic and spatial compound imaging.
5. IMT and automatic PW envelope measurement.
6. Built-in workstation and DICOM.
7. Biopsy and lithotripsy guidance.
8. Built-in battery with more than 3 hours of operating time.
9. Built-in SD card of at least 128GB.
10. Boot time of less than 13 seconds.
Basic Operating Procedure
1. Check the main unit, probe and battery status before use.
2. Connect the required probe to the probe socket.
3. Turn on the system and wait for it to start.
4. Enter the patient information and select the examination type.
5. Select B, M, PW, Color or PDI mode according to the examination.
6. Apply ultrasound gel to the probe or examination area.
7. Adjust depth, gain, focus and image-processing parameters.
8. Perform distance, area, IMT or automatic PW envelope measurements as required.
9. Activate biopsy or lithotripsy guidance when required.
10. Save the necessary images and examination report.
11. Turn off the system and clean and disinfect the probe after use.
Precautions
1. The system should be operated by trained medical professionals.
2. Select the correct probe for the examination area.
3. Transvaginal and rectal probes must be disinfected according to the applicable procedure.
4. Strict aseptic procedures must be followed during biopsy-guided operations.
5. The intended use is subject to the product registration certificate and local regulations.
C20 Color Doppler Clinical Images
C20 can display a wide range of clinical ultrasound images, including:
1. Abdominal liver and gallbladder images.
2. Gynecological and endocavitary images.
3. Small-parts and superficial-tissue images.
4. Vascular color Doppler images.
5. PW spectral Doppler images.
6. Urological and prostate images.
7. Cardiac ultrasound images.
8. Pediatric ultrasound images.
9. Biopsy and lithotripsy guidance images.
The clinical images shown on this page are provided only to demonstrate the imaging functions of the system. Examination results should be interpreted by trained medical professionals.
Transducers

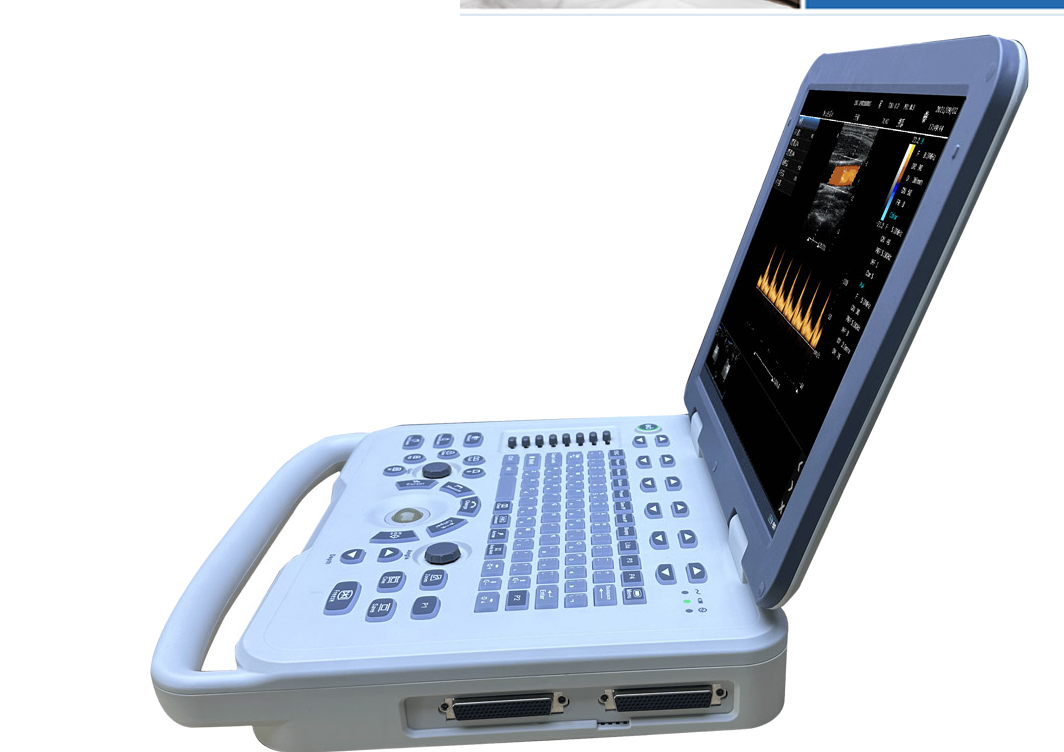

Portable Ultrasound System
Lightweight system with a 15-inch LCD display.

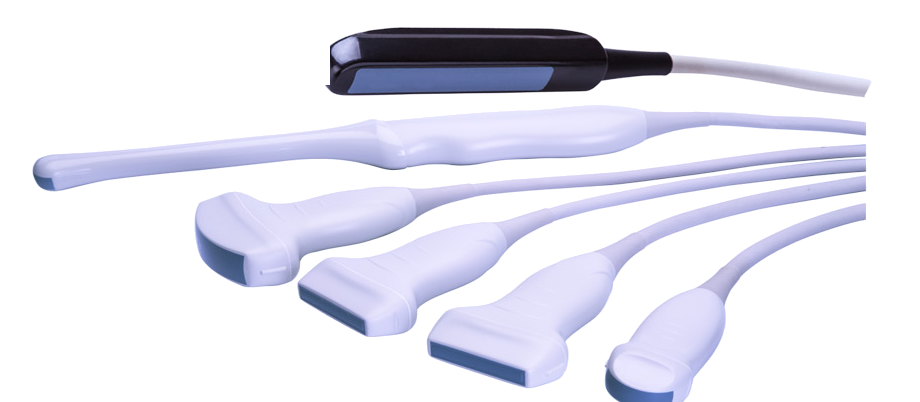

Multiple Probe Options
Optional transvaginal

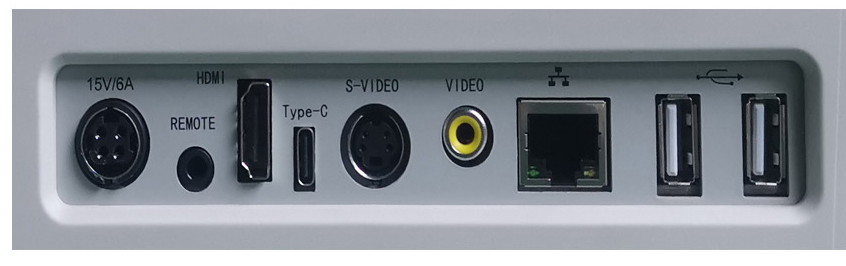

Multiple Connectivity Ports
Equipped with HDMI
