3W-2100 Product feature：
8steps for TGC and digital over-all Gain grasp the high-quality image Whole-course real-time continuous dynamic focusing and aperture obtains high-resolution and picture in picture in Super professional software packages to have the scanner widely used in Obstetrics Gynecoloyg,Urology, Cardiology ,Small parts |
| Screensize: | 10.4inchTFTcolorLCD |

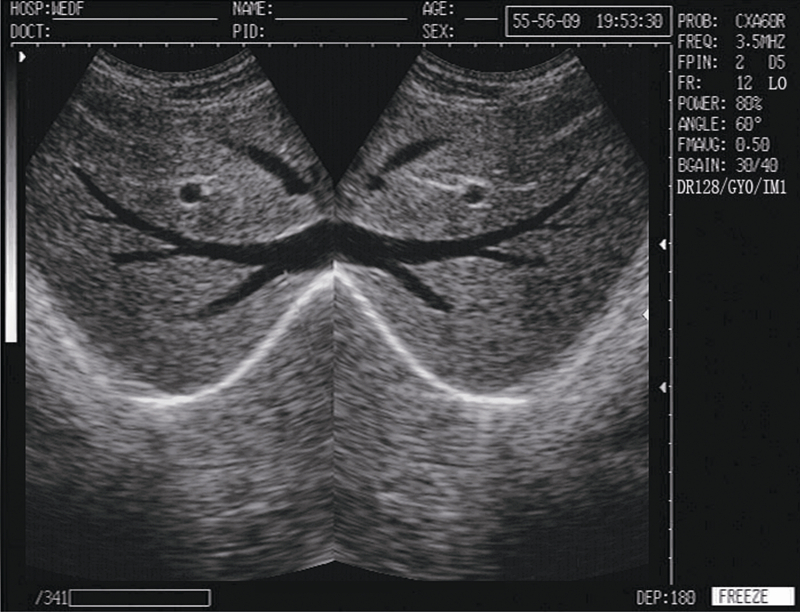

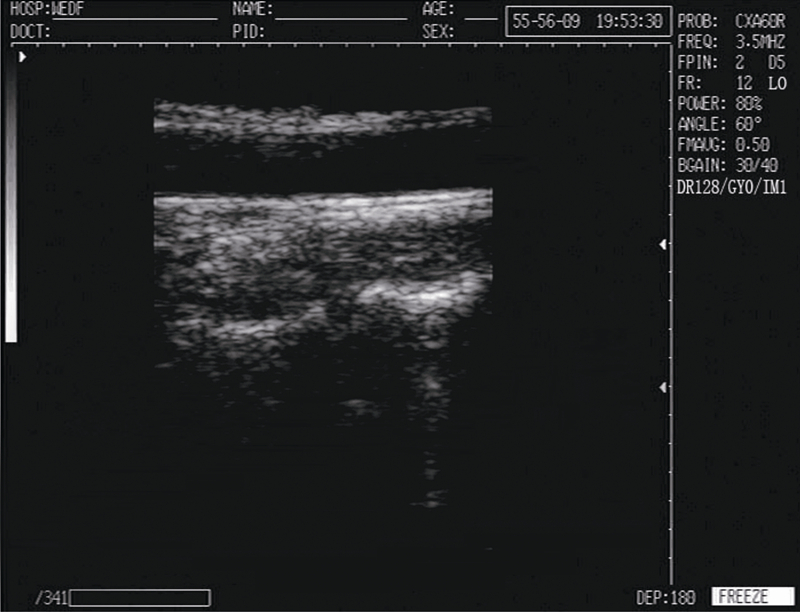

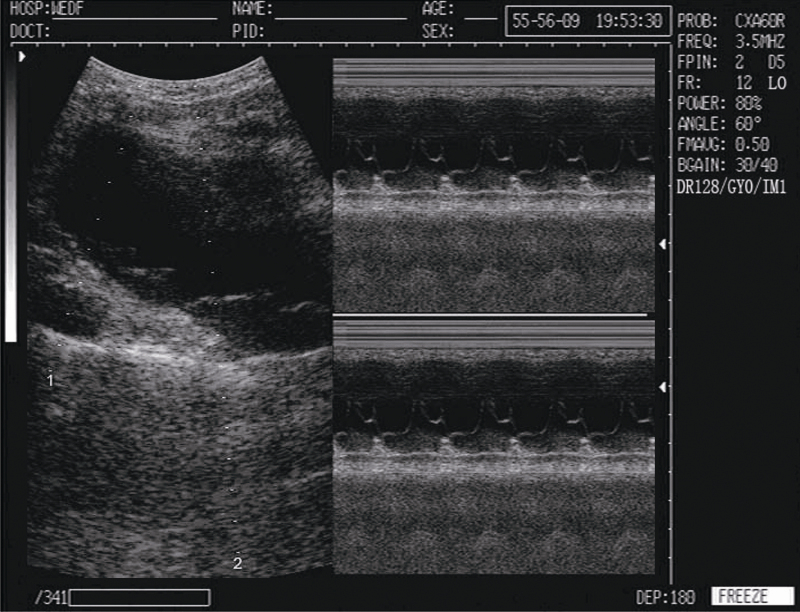

| DisplayMode: | B,B+B,B+M,B+M/M,M,4B |
| Imagegrayscale: | 256Scale |
| ImageStorage: | 64images |
| Scanangle: | Adjustable |
| Scandepth: | 40mm-240mm |
| Imageflip: | Up/down,left/right,black/white |
| PeripheralPort: | USBport;VGAport;VideoPort |
| PowerSupply: | 14v |
| ImageProcess: | GAMA,ImageSmoothen,THIHistogram,Zoom |
| Focus: | FoucsNumber,Foucsposition,Focusspace |
| Weight: | 3.5KGincludingthebattery |
| Size: | 0.49*0.35*0.2m |
| Packing: | N.W.(3.5KG)G.W.(7KG) |
3W-2100 Standard Configuration：
3W-2200 Main Unit
One(1)AC-Adaptor
R60/3.5MHz Convex Probe
One(1) Rechargeable battery
3W-2100 Optional：
R13/6.5MHz Transvaginal
R20/5.0MHz Micro Convex
L40/7.5MHz Linear
Trolley Cart
SONY Video Printer

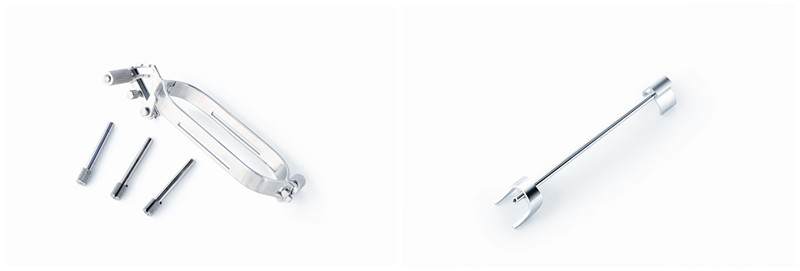

Biopsy Brackets

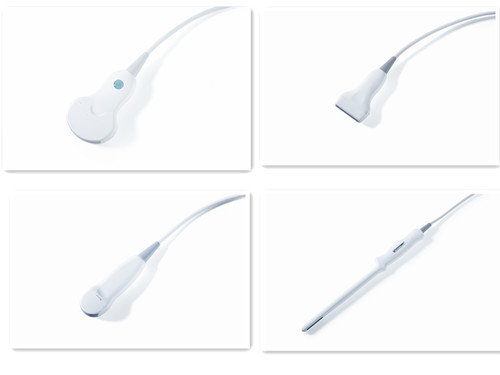

R50/3.5MHz convex probe L40/6.5MHz Linear Probe R20/5.0MHz Micro-convex Probe R10/6.5MHz Transvaginal Probe
SONY Video Printer Trolly Cart Biopsy Brackets |
