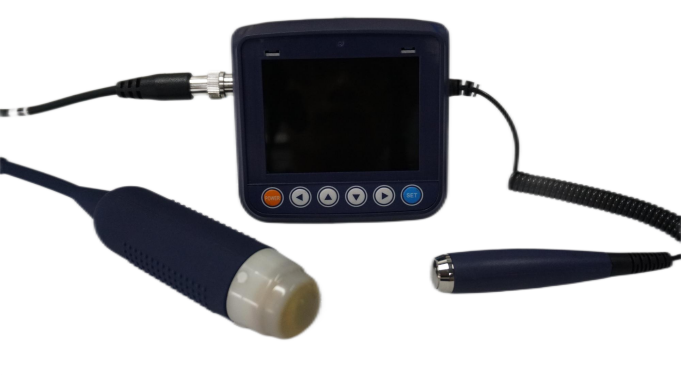

Wristscan V9
Wristscan V9

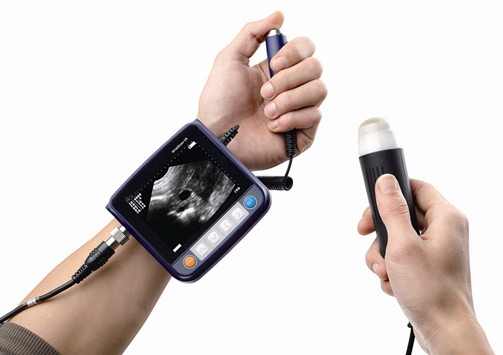

WristScan V9 is small in size, but big in functionality and features. with dust-proof and water-proof WristScan V9, you could make earlier, faster and more accurate diagnosis at the point of animal pregnancy at anytime, anywhere, no matter at animal hospital, even in or outdoor.
  • SUPPORT
  • SPECIFICATIONS
  • OPTION
  • GALLERY
WristScan V9 is small in size, but big in functionality and features. with dust-proof and water-proof WristScan V9, you could make earlier, faster and more accurate diagnosis at the point of animal pregnancy at anytime, anywhere, no matter at animal hospital, even in or outdoor.


Animal:



Specifications:
Monitor: 3.5 inch high resolution color TFT LCD, 640 x 480 pixels
Probe: Multi-frequency mechanical sector probe
Frequency: 2.5/3.5/5.0MHz
Depth: Max 160mm
Scan Angle: 78 degree
Gray Shade: 256 gray levels
Built-in Memory: Up to 128 frames
Common Measurement: Distance, Area, Volume, Heart Rate

OB Measurement:
Pig-HL,Sheep/Goat-USD;Bovine-BL, SL, HLCat-HD,

BD;Dog-BD, GSD, CRL, HD, BD
AC-adapter: 110V~240V, 50/60Hz
Battery: Internal Li Ion battery pack
More than 2.5 hrs for continuous working
Fully charges batteries in 2hrs (75% charge in 1 hr)





Excellent image quality

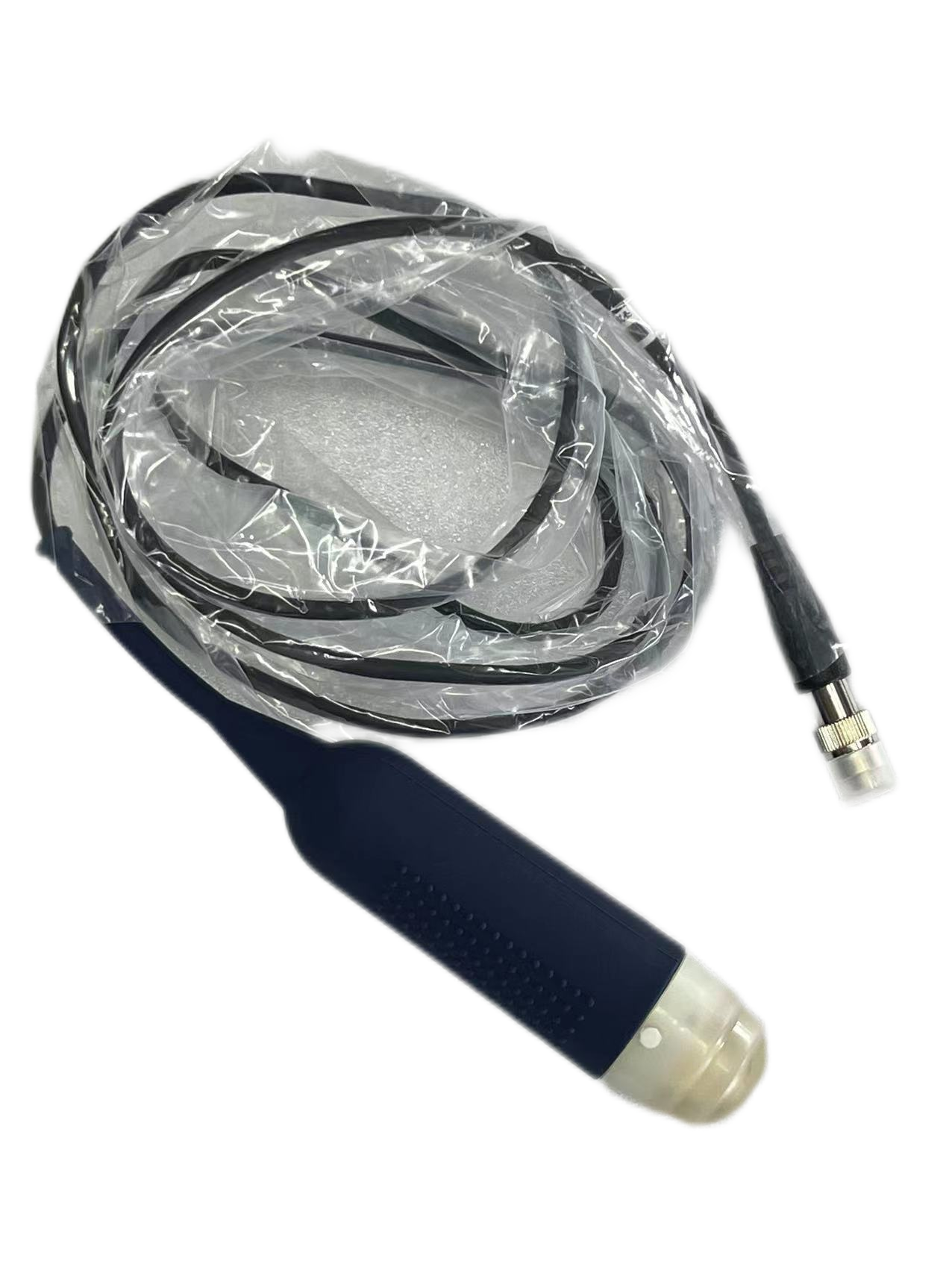

Transducers
